Description:
JIUHE mixer truck pump truck has the characteristics of strong output, large torque, high efficiency and energy saving, and strong off-road performance.
Advantages and highlights:
1. Efficient Mixing and Pumping: our truck mixer pumps integrate mixing and pumping functions in one unit, ensuring efficient mixing and conveying, saving time and labor costs.
2. High Quality, Affordable Price: Experience the synergy of quality craftsmanship and affordability. We insist on using high quality materials while ensuring that our products are competitively priced, making your investment worthwhile.
3.Intelligent Control: Equipped with advanced control system and intelligent functions, it simplifies the operation process, reduces human errors and improves construction efficiency.
4.Environmental Protection: adopting energy-saving design and high-efficiency power system to reduce energy consumption and emissions, in line with modern environmental protection requirements.
specification:
Parameter:
| 1. Boom system | ||
| 1 | Maximum vertical height of boom (M) | 29.2 |
| 2 | Horizontal fabric radius of arm (M) | 25.6 |
| 3 | Fabric Depth(M) | 17.3 |
| 4 | Boom opening height (M) | 7 |
| 5 | First arm length (MM) | 7660 |
| 6 | Second arm length (MM) | 6200 |
| 7 | Length of the third arm (MM) | 5900 |
| 8 | Fourth arm length (MM) | 5800 |
| 9 | Rotation angle of each arm | 90°/180°/230°/245° |
| 1 0 | Boom control mode | Electric ratio |
| 1 1 | Arm folding method | Type M |
| 1 2 | Turret rotation angle | 470° |
| 1 3 | Front outrigger span distance (mm) | 4100 |
| 1 4 | Rear outrigger span distance (MM) | 4100 |
| 1 5 | Longitudinal distance between front and rear outriggers (mm) | 5850 |
| 1 6 | Outrigger opening method | HH |
| 1 7 | Tail hose length (MM) | 3000 |
| 18 | Concrete delivery pipe diameter (MM) | 125 |
| 2. Electrical control system | ||
| 1 | Operating voltage | 24V |
| 3. Hydraulic transmission system | ||
| 1 | Hydraulic system type | Open |
| 2 | System working pressure(Mpa) | 31.5 |
| 3 | Hydraulic oil tank capacity (l) | 350 |
| 4 | Hydraulic oil cooling method | Air Cooling |
| 4. Dimensions & Weight | ||
| 1 | Overall length of vehicle (mm) | 10000 |
| 2 | Overall width of vehicle (mm) | 2 540 |
| 3 | Overall height of vehicle (mm) | 3945 |
| 4 | Vehicle mass (T) | 20.5 |
| 5 | Upper mass (T) | 9.7 |
| 5. Pumping system | ||
| 1 | Concrete distribution valve type | S valve |
| Maximum theoretical delivery capacity (m³/h) | 60 | |
| 2 | Maximum concrete outlet pressure (Mpa) | 7.9 |
| 3 | Maximum number of commutation times | 31 |
| 4 | Delivery cylinder inner diameter/stroke | 200/1000 |
| 5 | Maximum loading height (MM) | 1 45 0 |
| 6 | Hopper capacity (M 3 ) | 0.6 |
| 7 | Pumpable concrete slump | 160-220 |
| 8 | Maximum allowable aggregate size (mm) | 40 |
| 9 | Lubrication method | Centralized lubrication |
| 6. Mixing system | ||
| 1 | Maximum theoretical capacity of mixing tank (m³) | 12 |
| 2 | Rated theoretical capacity of mixing tank (m³) | 8.5 |
| 3 | Mixing tank speed (r /min ) | 0-14 |
| 4 | Water tank capacity (L) | 500 |

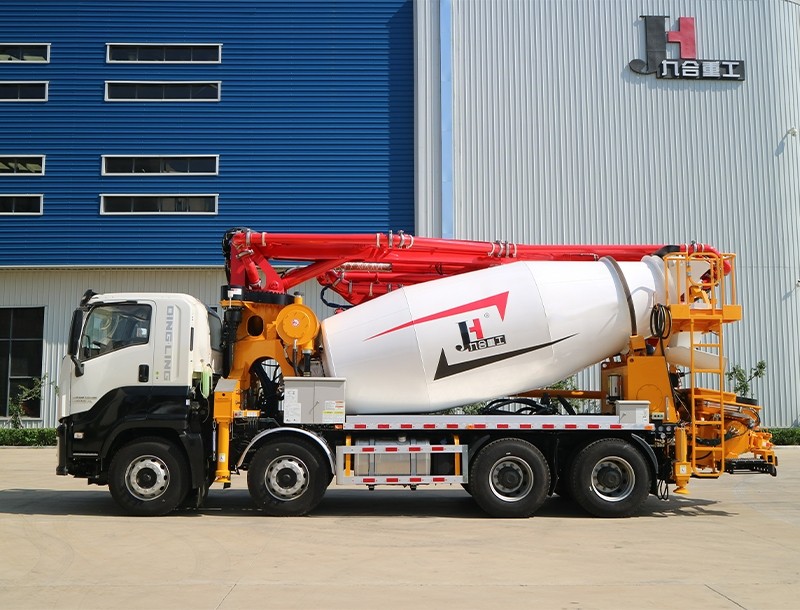

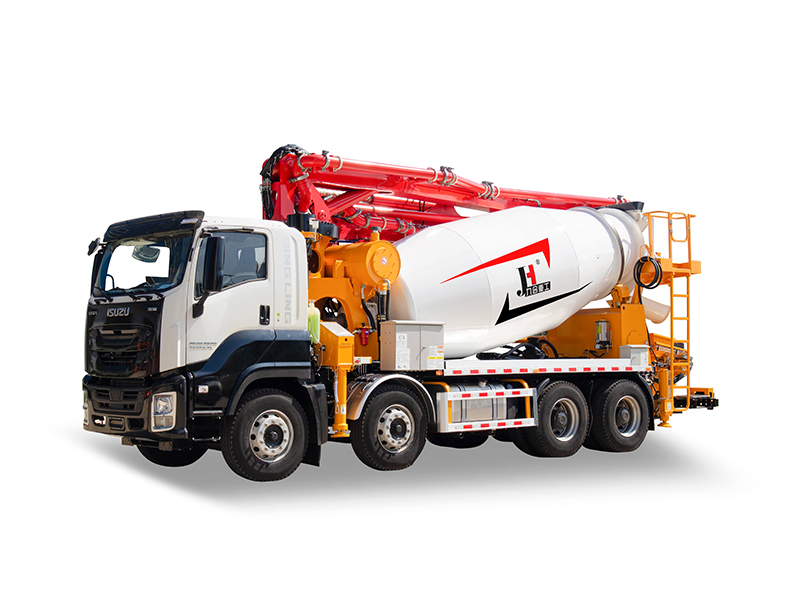

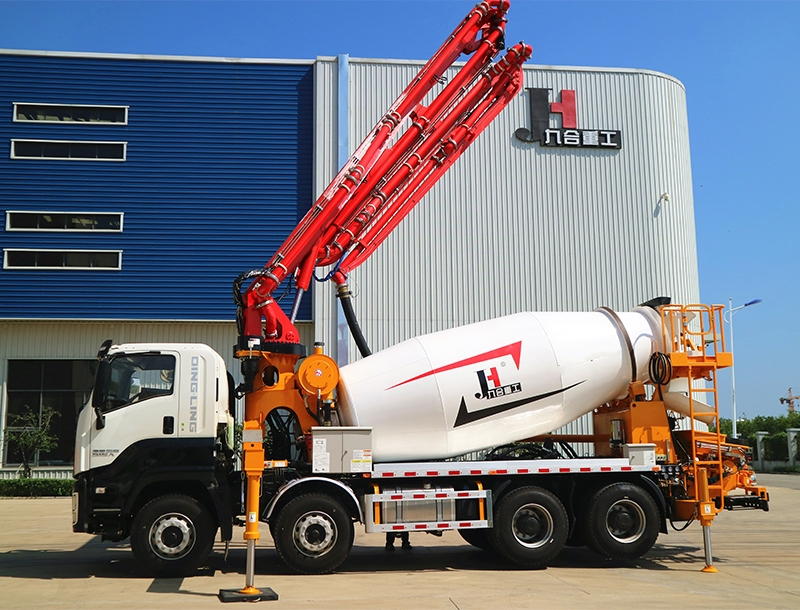

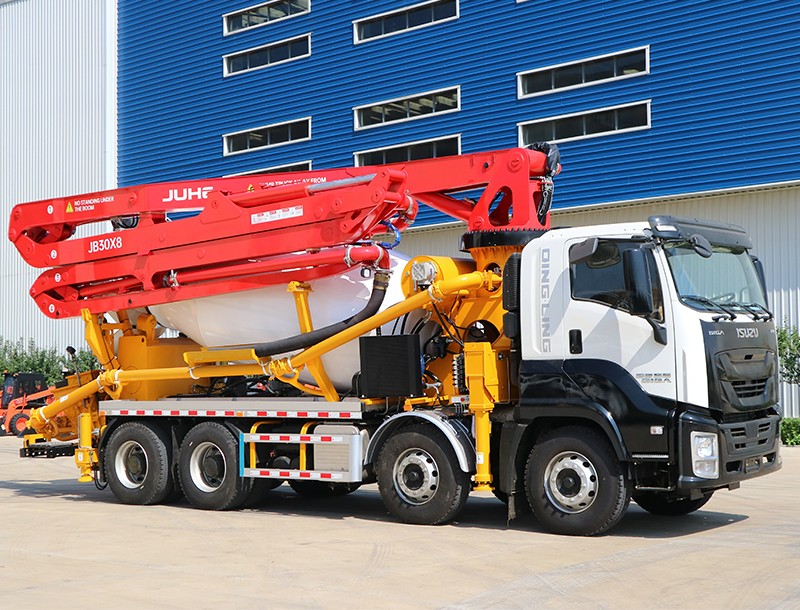

Photos:
