Description:
Brief introduction to XBS and DXBS series fine stone concrete pumps
XBS DXBS series products are also widely used for the conveying of fine stone concrete, fir-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.
The inner diameter of conveying pipe has developed into Φ100 based on former Φ80 so that XBS DXBS series products can convey concrete with diameter no more than 30mm,which makes XBS DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.
specification:
| Item | Unit | Parameter | |
| Pumping system | Theoretical max. discharging volume | m³/h | 25 |
| Theoretical max. delivery pressure | Mpa | 12 | |
| Max. delivery frequency | times/min | 24 | |
| The type of distribution valve | S tube valve | ||
| Specification of delivery cylinder | mm | 140×800 | |
| Specification of main oil cylinder | mm | Φ80×Φ50×800 | |
| Oil tank capacity | L | 200 | |
| Hopper capacity | L | 300 | |
| Outlet opening diameter | mm | Φ125 | |
| Inner dia. of delivering pipe | mm | Φ80 | |
| Power system | Motor power | Kw | 30 |
| Rated speed of main motor | r/min | 1470 | |
| Assistant motor power | Kw | 3 | |
| Hydraulic system | Hydraulic oil circuit type | Open circuit | |
| Max.oil pressure of pumping system | MPa | 25 | |
| Max.oil pressure of mixing system | MPa | 9 | |
| Max. mixing speed | r/min | 24 | |
| Max.diameter of aggregates | mm | 25 | |
| Outlet dimension (length×width×height) | mm | 4100×1500×1500 | |
| Weight | Kg | 2000 | |
| Pulling speed | Km/h | ≤8 | |
| Max. delivery distance | horizontal | 350 m | |
| vertical | 140 m | ||

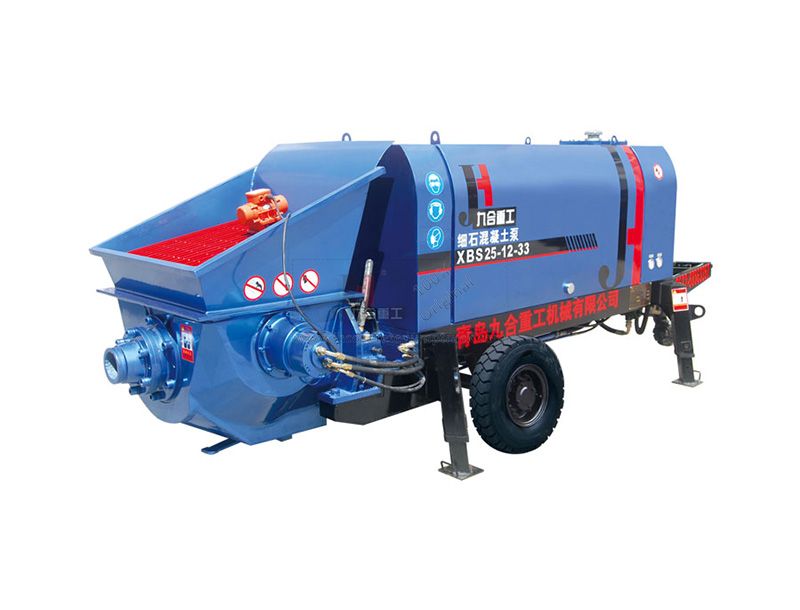

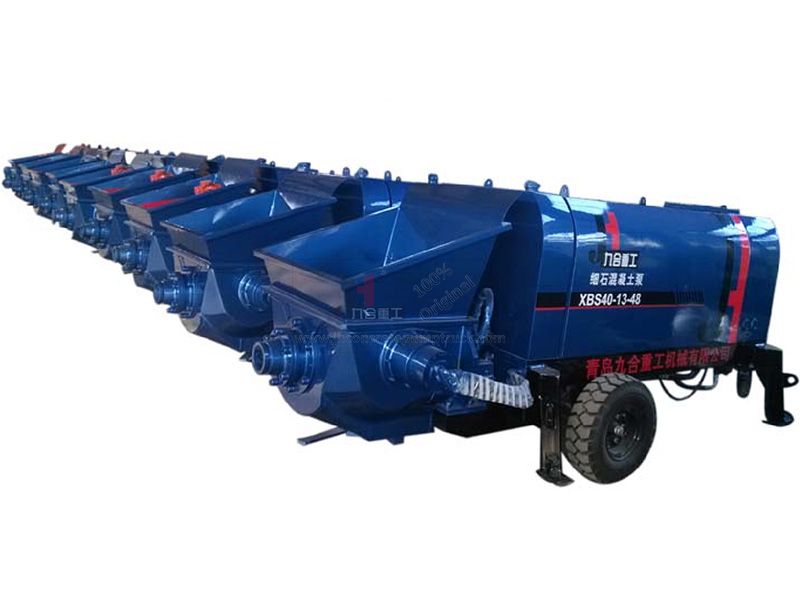

PHOTOS:
