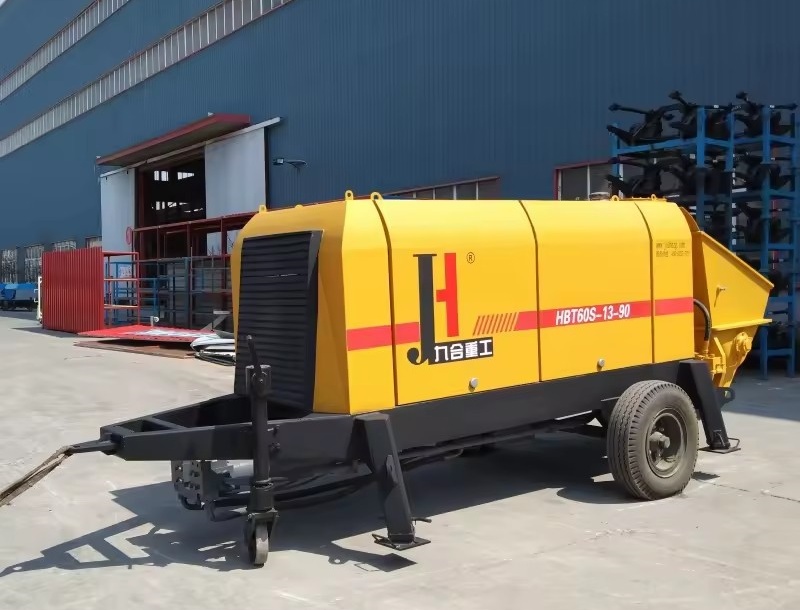

HBT60 concrete pump

To meet different size concrete pumping need, JIUHE researched and developed 40-80m3/h electric trailer concrete pump for sale, fully hydraulic system, simple structure, Centralized lubrication to ensure the diesel trailer concrete pump reliable and excellent performance.

Share:

Description:

Brief Introduction

On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition.

A. Pre-sales service:

1. Selecting the most suitable equipment,

2. Designing your personal machinery according to special construction demands,

3. Training your technicians to operate our equipment,

4. Providing advice to ensure equipment running well in various construction. environments,

5. Making new construction scheme if necessary.

B. Sales service:

1. Equipment delivery transport agent,

2. Equipment quality control before delivery,

3. Introduce our service system to customers.

C. After-sales service:

1. Making the first construction scheme,

2. Installing and debugging your equipment,

3. Troubleshooting on site, prompt and initiative,

4. door to door accessories and parts,

5. Opportunities to get technical communications with our engineers.

D. Value-added service:

1. Overall process and zero distance technology tracking service for key projects,

2. Carry out large maintenance business,

3. Regular equipment checking service,

4. Technology update,

4. Provide professional periodic maintenance standards for customers.

JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:

1. Dispatch technicians to install and debug equipment in time if necessary,

2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,

3. Provide free operation and maintenance training service for users

4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.




specification:

Item

Unit

Parameter

Pumping system

Max. theoretical delivery volume

m³/h

60

Max. theoretical delivery pressure

MPa

12.5

Max. delivery frequency

times/min

22

Distribution valve type


S tube valve

Main oil cylinder specification:                          cylinder dia./pole dia.× journey

mm

Φ125/Φ80×1650

Concrete cylinder specification

mm

Φ200

Hopper capacity

L

600

Output opening diameter

mm

150

Hoisting height

mm

1400

Power system

Main electric motor power

Kw

90

Rated voltage

V (AC)

380

Rated rotation speed

r/min

1480

Hydraulic system

Type of Hydraulic oil circuit


Open circuit

Main oil pump


Japanese Kawasaki

Maximum system oil pressure

MPa

32

Maximum oil pressure of mixing system


14

Highest mixing rotate speed

r/min

24

Hydraulic oil tank capacity

L

420

Allowed max dia.of aggregate


Pebble50, crushed stone 40

Inner dia.of concrete delivery pipe

mm

Φ125

Max. delivery distance

horizontal

700m


vertical

180m

Dimension (length× width×height)

In transit

mm

6170×1800×2100

Weight

kg

5100
