Description:
HBT and DHBT Series Concrete Pump Hydraulic system Advantages
Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.
Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.
Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.
Reduce maintenance costs
Full hydraulic commutation system, deleting four parts extremely damageable in the electronic commutation system, reduces equipment maintenance costs.
specification:
| Item | Units | Technical data | |
| Whole Machine Performance | theoretical delivery volume | m³/h | 40 |
| theoretical delivery pressure | MPa | 10 | |
| Max. delivery frequency | Times/min | 24 | |
| theoretical delivery height | m | 130 | |
| theoretical delivery distance | m | 350 | |
| Type of distribution valve | S Tube Valve | ||
| Specification of delivery cylinder | mm | Φ160×1200 | |
| Specification of main oil cylinder | mm | Φ100/Φ70×1200 | |
| Oil tank capacity | L | 300 | |
| Hopper capacity | L | 400 | |
| Feeding height | mm | 1400 | |
| Outlet diameters | mm | Φ125 | |
| Delivery pipe inner diameter | mm | Φ100 | |
| Power system | Diesel Power | Kw | 85 |
| Rated rotate speed | r/min | 2200 | |
| Idling speed | r/min | 800 | |
| Voltage of battery cell | V | 24V | |
| fuel tank capacity | L | 150 | |
| Hydraulic system | Hydraulic oil circuit type | Open Circuit | |
| Max. oil pressure of main system | MPa | 25 | |
| Max. oil pressure of mixing system | MPa | 14 | |
| Max. mixing rotate speed | r/min | 24 | |
| Other parameters | Concrete slump | mm | 80～200 |
| Allowable max dia. of aggregate | mm | ≤25 | |
| Dimension（length×width× height） | mm | 4970×1680×2580 | |
| Weight | Kg | 3400 | |
| Pulling speed | Km/h | ≤8 | |

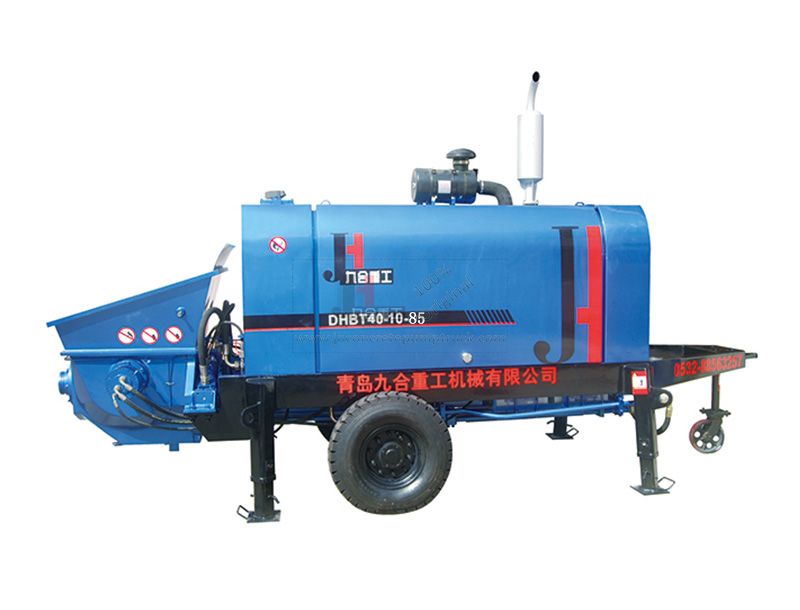

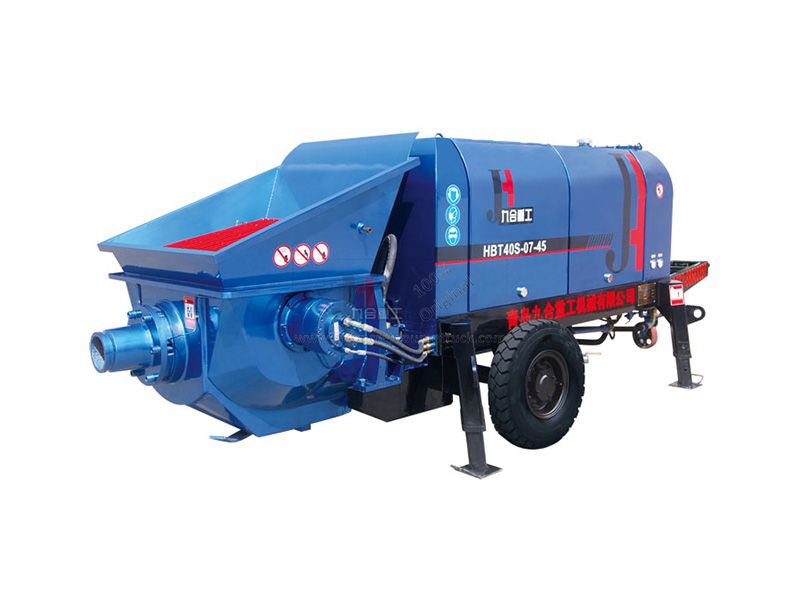

PHOTOS:
