Description:
A fracturing pump truck is the main equipment for fracturing operation, which is used to inject high-pressure fracturing fluid in large doses to fracture the formation and leave the proppant in the cracks.
Fracturing pump trucks mainly include chassis, locomotive, gearbox, plunger pump, radiator, control system, etc., which are widely used in deep well, medium-deep well, and shallow well fracturing operations in shale gas and coalbed methane fields. It can be operated alone or online.
1. Adopt special off-road chassis with strong off-road capability;
2. Suitable for pumping operations of various fluids;
3. Select an electrical overvoltage protection system;
5. High-power high-pressure plunger pump with reliable and stable quality;
6. Adopt remote Ethernet network control, which is safe and reliable

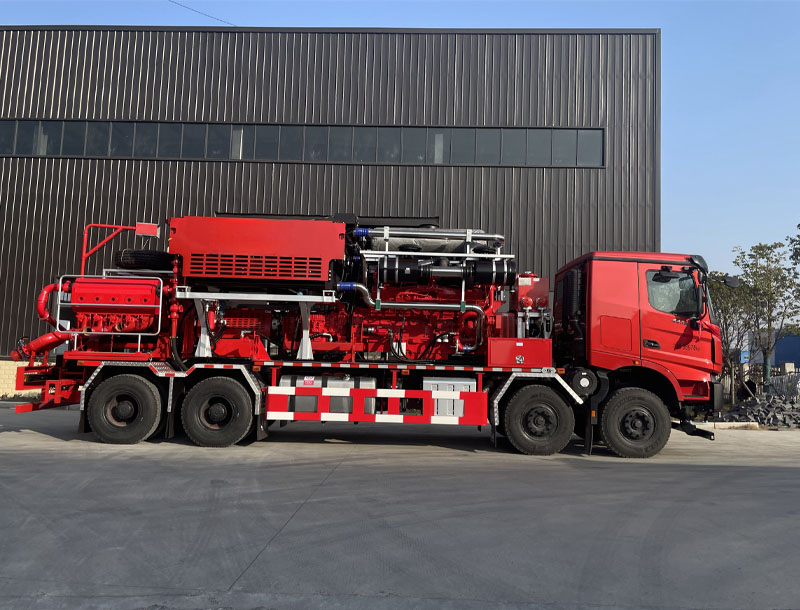

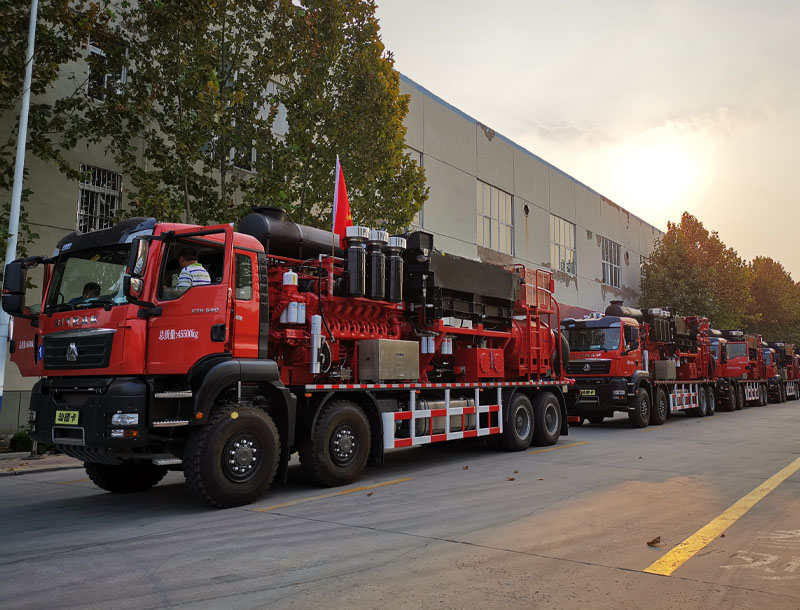

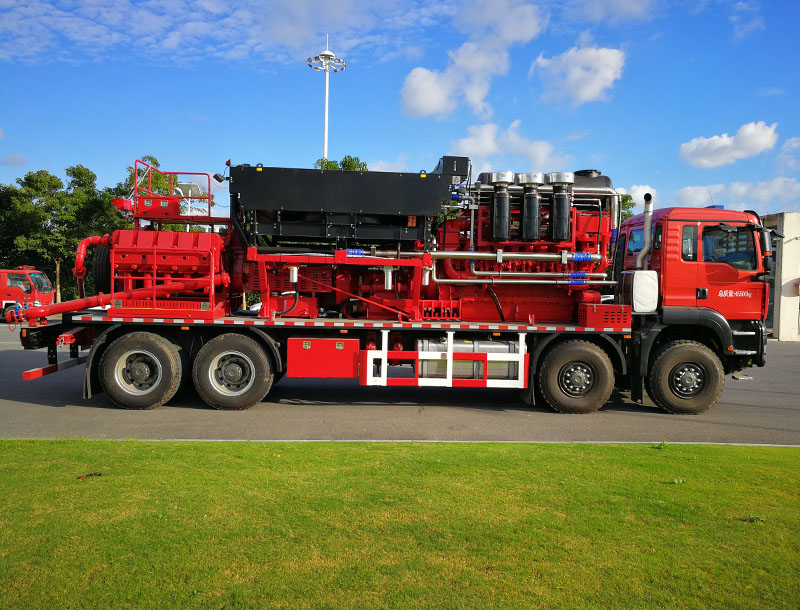

PHOTOS:
specification:
Parameter:
Max. working pressure（MPa） | 105 | 105 / 140 | 105 / 140 | 105 / 140 |
Max. displacement（L/min） | 1507 / 1631 | 1873 / 2460 | 2460 / 1894 | 3133 / 2098 |
Plunger diameter （mm） | 76.2 / 101.6 (114.3) | 114.3 / 101.6 (101.6 / 127) | 101.6 / 95.25 (114.3 / 127) | 114.3 / 139.7 (127) |
Overall dimension （mm） | 10680×2500×3870 | 11160×2500×4170 | 11500×2500×4150 | 12440×2500×4145 |
Total mass（kg） | 27000 | 39000 | 41000 | 46000 |
Structural configuration | Truck / Skid / Trailer mounted | |||
Plunger pump | KERUI / GD / SPM | |||
Chassis | MAN / BENZ / International / KAMAZ / Kenworth / BEIBEN | |||
Engine | CAT / MTU | CAT / CUMMINS / MTU | CUMMINS / MTU | |
Engine power （kW） | 882 | 1654 | 1838 | 2205 |
Hydraulic transmission | ALLISON / Winstar | ALLISON / Winstar | CAT / Winstar | TWIN DISC / Winstar |
Radiator | Vertical | Horizontal | ||
Control system | Network auto control, local/network remote control | |||
High pressure manifold system（MPa） | 105 | 105 / 140 | 105 / 140 | 105 / 140 |
Other | Over-pressure protection device, mechanical over-pressure protectio | |||
